In many industries – medical devices, optics, automotive electronics – parts must fit together with extreme accuracy. A gap of a few microns can cause a device to fail. That is why precision injection molding is essential for critical components. At Miracles Manufacturing, we specialize in holding tight tolerances, often ±0.05 mm or better, on complex geometries. Our combination of advanced all‑electric machines, in‑house mold making, and rigorous process control ensures every part meets your specifications. This page explains what precision molding involves, the factors that affect tolerances, and how our high precision injection molding services deliver consistent results.
What Is Precision Injection Molding?
Precision injection molding is the production of plastic parts with exceptionally tight dimensional tolerances. While standard molding might hold ±0.1–0.2 mm, precision molding routinely achieves ±0.05 mm or even ±0.01 mm for small features.
Where it is needed:
- Medical devices (catheters, syringe components, implants)
- Optical components (lenses, light guides)
- Gears and moving parts
- Electrical connectors
- Parts that must assemble with zero slop
- Miniaturized components
What makes it different:
- Mold accuracy: Molds must be machined to micron precision
- Machine capability: All‑electric machines offer better control than hydraulics
- Process stability: Temperature, pressure, and speed must be tightly regulated
- Material consistency: Lot‑to‑lot variation must be minimized
- Environmental control: Temperature and humidity can affect dimensions
For a complete overview of our capabilities, visit our custom injection molding services page .
Why Choose Miracles for Precision Molding
All‑Electric Machines

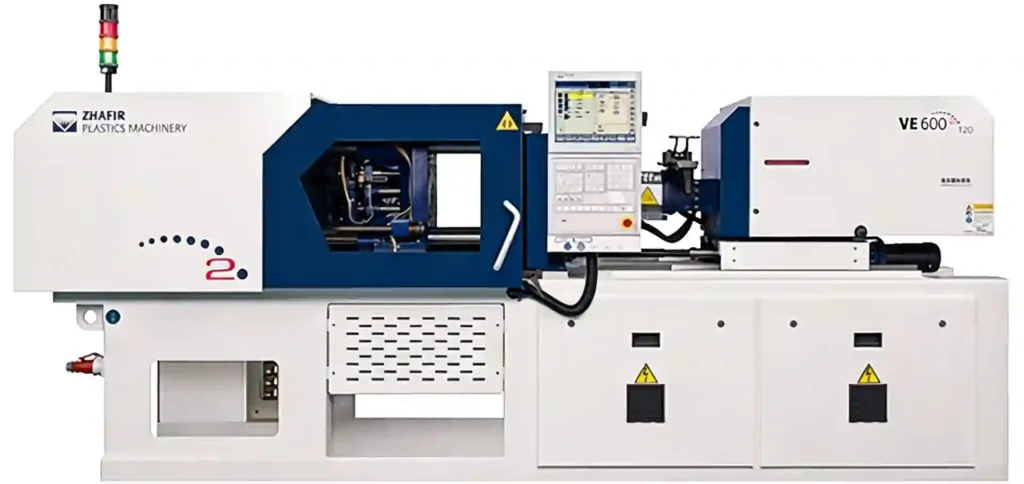

all electric injection molding machine
We use all‑electric injection molding machines for most precision work. They offer:
- ±0.01 mm repeatability
- Faster response times
- Cleaner operation (no oil leaks)
- Energy efficiency
In‑House Precision Tooling
Our toolroom is equipped with high‑speed CNC mills, wire EDM, and sinker EDM capable of holding micron tolerances. We build molds specifically for precision applications, with features like:
- Multi‑stage ejection to prevent part damage
- Balanced cooling for uniform shrinkage
- Hardened tool steel for long‑term stability
Process Monitoring
We monitor key parameters in real time – melt temperature, injection pressure, screw position, cavity pressure. Any deviation triggers an alert, ensuring every shot is within spec.
Metrology Lab
We have CMM (coordinate measuring machine), optical comparators, and surface testers to verify dimensions. For optical parts, we use light transmission and haze measurement.
Real‑scenario example: A medical device client needed a Luer connector with ±0.02 mm on the internal taper. Our team designed a mold with precision‑ground cores, used an all‑electric machine, and implemented SPC. Over a million parts later, the process remains in control.
For complex geometries requiring advanced mold design, see our precision mold engineering .
Factors Affecting Tolerances in Injection Molding
Mold Accuracy
The mold determines the part’s nominal shape. If the mold cavity is off by 0.01 mm, every part will be off by that amount. We machine molds to tolerances of ±0.005 mm or better.
Material Shrinkage
Every plastic shrinks as it cools. Shrinkage varies with:
- Material grade
- Processing conditions (temperature, pressure, cooling rate)
- Part geometry (wall thickness, flow direction)
We use mold flow simulation to predict shrinkage and design the cavity accordingly.
Process Stability
Small changes in melt temperature, injection speed, or packing pressure can affect final dimensions. We use closed‑loop control to maintain setpoints within narrow bands.
Environmental Factors
Parts can expand or contract after molding due to temperature and humidity changes. For critical parts, we may condition them in controlled environments before measurement.
Post‑Molding Handling
Even a precision‑molded part can be distorted by rough handling. We use automated part removal and gentle conveyors to preserve dimensions.
Materials for Precision Molding
Some materials are naturally more stable and predictable:
| Material | Shrinkage | Dimensional Stability | Typical Tolerances |
|---|---|---|---|
| POM (Acetal) | 1.8–2.2% | Excellent | ±0.05 mm |
| PC (Polycarbonate) | 0.5–0.7% | Very good | ±0.05 mm |
| PEEK | 0.5–1.0% | Excellent | ±0.03 mm |
| LCP | 0.1–0.5% | Excellent (thin walls) | ±0.02 mm |
| ABS | 0.4–0.7% | Good | ±0.08 mm |
| Nylon (unfilled) | 0.5–1.5% | Moderate (moisture sensitive) | ±0.10 mm |
| Glass‑filled | 0.2–0.8% | Very good (but anisotropic) | ±0.05 mm |
We help you select the right material based on your tolerance requirements and application.
Design for Precision Molding
Achieving tight tolerances starts with design:
Uniform Wall Thickness
Variations in thickness cause differential shrinkage, leading to warpage and inconsistent dimensions. Keep walls as uniform as possible (typically 1.5–3.0 mm).
Avoid Thick Sections
Thick sections take longer to cool and shrink more unpredictably. Core out thick areas or use ribs for strength.
Gate Location
Place gates where they promote uniform filling and minimize orientation effects. For precision parts, consider multiple gates or film gates to reduce stress.
Draft Angles
Adequate draft (1–2°) ensures clean ejection without distorting the part.
Tolerancing
Specify tolerances only where needed. Over‑tolerancing increases cost without adding value. We can help you set realistic tolerances based on material and geometry.
For more detailed design guidelines, refer to our design for manufacturability guide .
Our Precision Molding Process
Step 1 – Design Review
We analyze your 3D model and identify potential tolerance challenges. We may suggest design modifications to improve moldability.
Step 2 – Mold Design & Simulation
We design the mold with precision in mind:
- Shrinkage compensation based on mold flow analysis
- Cooling channel optimization for uniform temperature
- Ejection system that avoids marking critical surfaces
Step 3 – Mold Manufacturing
Our toolmakers machine the mold to tolerances of ±0.005 mm. We use wire EDM for intricate details and hardened steel for long life.
Step 4 – Process Development
We establish a robust process window using design of experiments (DOE). Key parameters are documented and locked.
Step 5 – Production & SPC
During production, we monitor critical dimensions with statistical process control (SPC). If a trend is detected, we adjust before parts go out of spec.
Step 6 – Inspection
Every batch includes first‑article and last‑article inspections. For critical features, we may inspect 100% using automated vision systems.
Common Challenges and Solutions
| Challenge | Solution |
|---|---|
| Part dimensions vary from lot to lot | Use SPC to monitor process, control material lots |
| Warpage after ejection | Optimize cooling, add cooling time, use fixtures |
| Sink marks on precision surfaces | Reduce wall thickness, increase packing pressure |
| Flash affecting fit | Check mold condition, reduce injection pressure |
| Dimensions change after storage | Condition parts before measurement, control humidity |
Real‑scenario risk: A client making optical lenses found that dimensions changed between winter and summer. We traced it to humidity‑related swelling in the material. We switched to a low‑moisture‑absorption grade and added conditioning before final inspection.
Quality Assurance for Precision Parts
Our quality system includes:
- First article inspection report with full dimensions and CMM data
- In‑process SPC charts for critical dimensions
- Material certifications for every lot
- Capability studies (Cpk) to verify process capability
- 100% inspection for critical features (vision systems if needed)
- PPAP documentation for automotive and medical applications
We work to ISO 9001:2015 and can support ISO 13485 and IATF 16949 requirements.
For more on our quality approach, see our quality management commitment .
Frequently Asked Questions
Q1: What is the tightest tolerance you can hold?
A: For small features in stable materials, we can hold ±0.02 mm. For most parts, ±0.2 mm is routine.
Q2: How do you measure such small tolerances?
A: We use CMM (coordinate measuring machine) with ±0.001 mm accuracy, optical comparators, and vision systems.
Q3: Does precision molding cost more?
A: Yes, because it requires higher‑quality molds, more capable machines, and more rigorous quality control. But the cost is justified when part function depends on fit. Without extra request for precision , we will handle as normal part.
Q4: What materials are best for precision molding?
A: Amorphous materials like PC and ABS are predictable. Semi‑crystalline materials like POM and PEEK can also achieve tight tolerances with proper process control.
Q5: Can you mold precision parts with glass‑filled materials?
A: Yes, but glass fibers cause anisotropic shrinkage, so design must account for different shrinkage in flow vs. cross‑flow directions.
Q6: How do you prevent warpage in precision parts?
A: Uniform wall thickness, balanced cooling, and proper gate design are key. We use mold flow simulation to optimize these factors.
For troubleshooting dimensional issues, refer to our injection molding defects guide .
