Solar panel corner protectors introduction
solar panel corner protector
Solar panel corner protectors , also named solar panel corner guards or sometimes solar panel protective corners, are used to protect the solar panel frame corners which are easily cracked or damaged during Collision against other objects. This protection is significantly useful especially when you stack one solar panel onto another or you hope to move these solar panels.
How to choose solar panel corner protectors?
So it is very important to use solar panel corner protectors .In fact , nearly 100% solar panels use these protective corners during shipping .But do you know how to choose proper protectors from so many so-called solar panel protective corners? Or do you know there are four generations of coner protectors in the market ?
Anyway , we will guide you with these 4 generations below:
Pls kindly note that we don’t produce these 4 generations for new customers as we have updated to 5th generation corner protectors.
The 1st generation corner protector

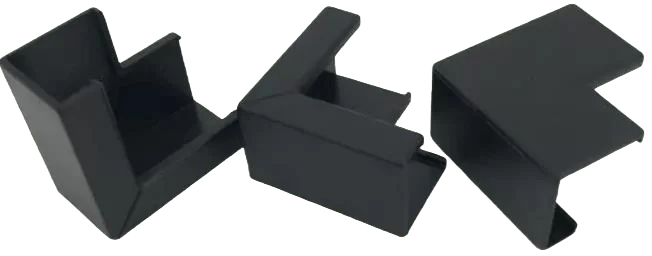

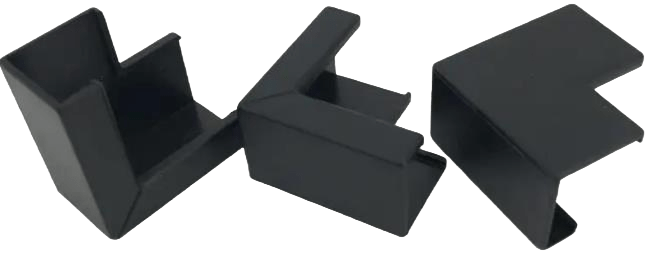

The 2nd generation corner protector
The 3rd generatioin solar panel corner protector
The 4th generation solar panel corner protector
When people realized many corners must be specially protected , this kind of universal protectors come into use.
When the 1st generation protectors easily drop off , designer developed folded edge to prevent protectors sliding off.
Designer has considered the production process and structural functionality of the 3rd generation protectors.
This version of solar panel corner protectors have further optimized the structure to increase durability and add logos.
Why the fourth generation solar panel corner protectors are so popular ?

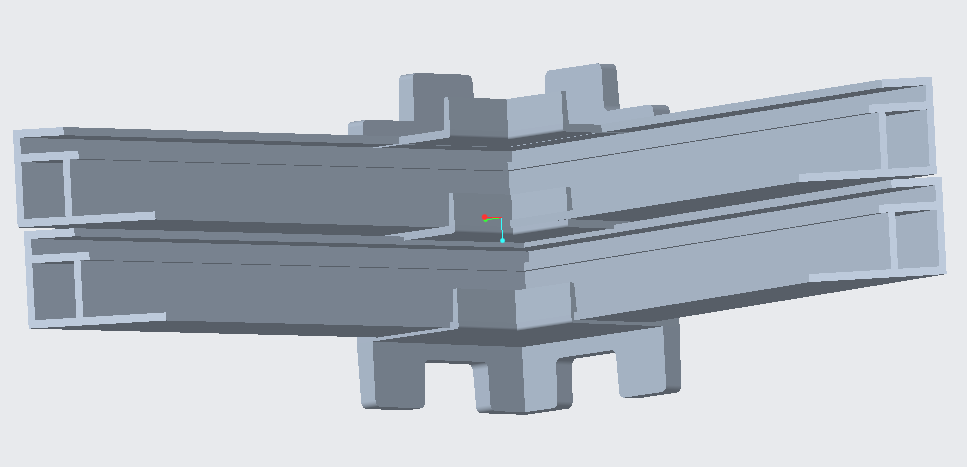

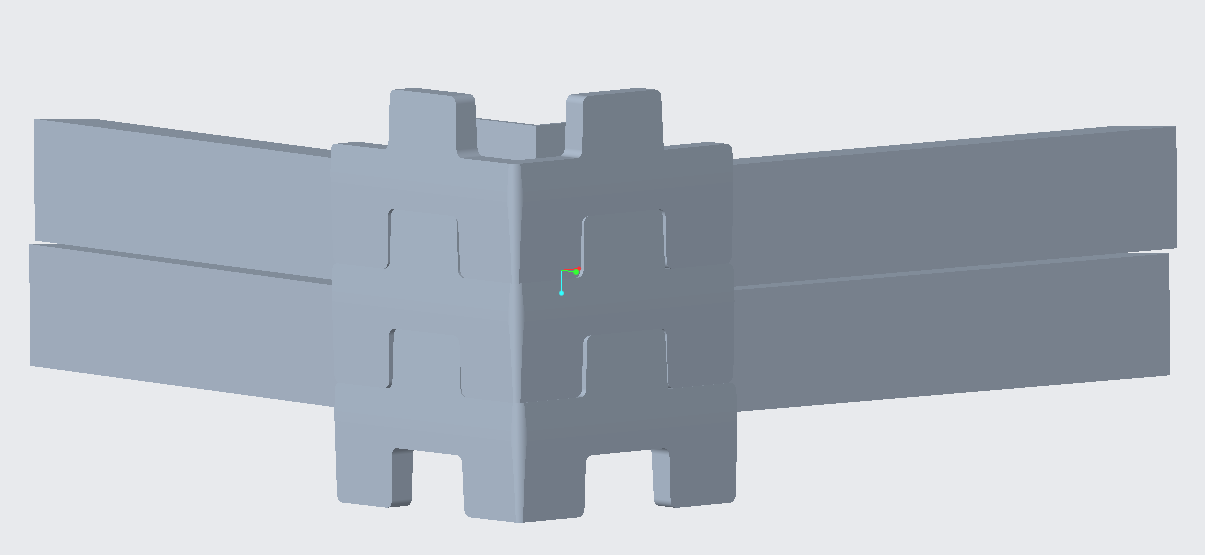

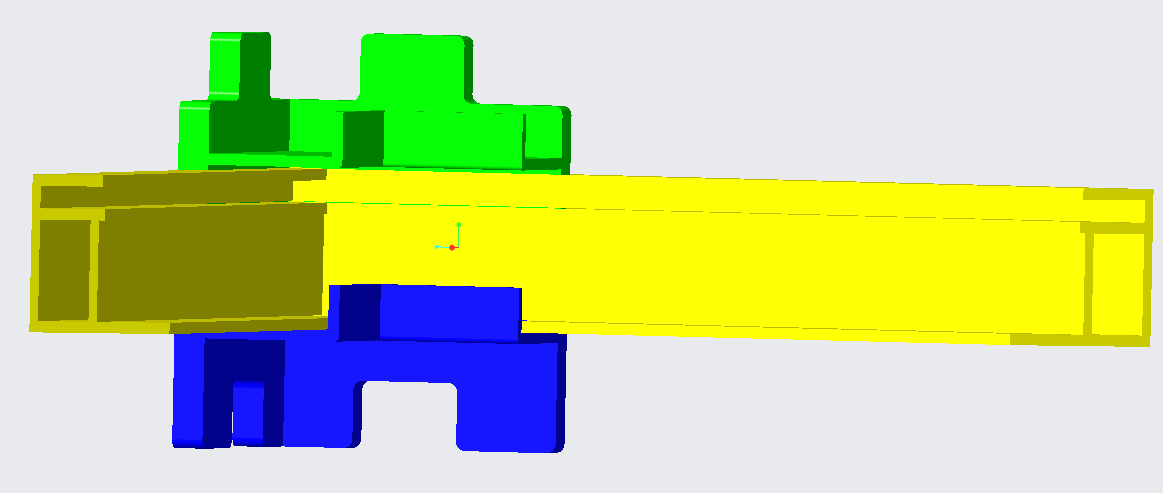

From left pictures , you may find that the solar panel corner protectors could not slide on horizontal directions as the construction restricts. With weight of solar panels themselves , the solar panel frames also could not move up and down . So the frames are “locked” and protected .
The wall thickness is thick enough which make the protector is more like a guard for solar panel frame corners.
And we can screen print LOGO for you.
Miracles G5 solar panel corner protectors
We summarise 4 versions protectors in the markets . But Miraclesmfg has worked out new 5th generation solar panel protective guards. If you only hope to know the features, pls click 5th generation solar panel protective guards features. But we suggest you to read the whole articles of miraclesmfg G5 pv modules protective guards. If you don’t hope to use or buy any protectors , you may have an idea to know Tips for preventing solar panel damage during transportation.
How to order ?

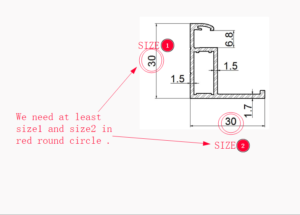

cross section
If you can supply the cross section drawing of your aluminium frame , or at lease supply us size one and size two marked as the picture shows , we are easy help you to get the suitable solar panel corner protectors .
If your size is not standard , DON’T WORRY ! We also can customize protectors for you.
Conclusion
So after you read this article , you know why solar panel corner protectors could protect . And you know how the four generations of protectors develop and you know the 4th generation protector is popular nowdays . You also know how to order proper size protectors too .
Here is a link to our 4th generation solar panel corner protectors or visit directly at https://miraclesmfg.net/products/solar-panel-frame-corner-protector/.
