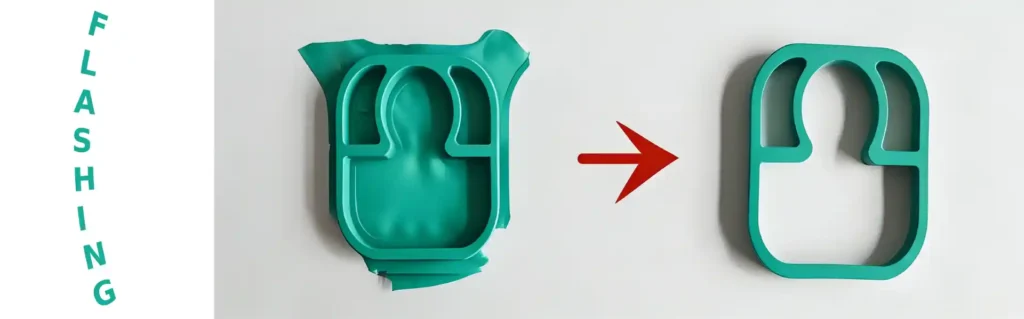

Flash – also called burrs or spew – is a thin layer of excess plastic that escapes from the mold cavity at the parting line. It can appear around the edge of a part, around ejector pins, or at any place where mold halves meet. Injection molding flash is not just an aesthetic problem; it adds secondary trimming costs, wastes material, and can indicate serious mold or process issues. Understanding what causes flash and how to prevent it is essential for producing clean, consistent parts. In this guide, we explore the root causes of mold flash and give you practical steps to eliminate it.
What Is Flash in Injection Molding?
Flash is a thin film of plastic that squeezes out between the mating surfaces of a mold. It typically appears along the parting line, around ejector pins, or at slide interfaces. Flash can be as thin as a hair or thick enough to interfere with part function.
Common locations for flash:
- Parting line between cavity and core
- Around ejector pins
- At slide or lifter interfaces
- Around inserts
- At vent grooves (if too deep)
Flash can occur on any molded part, but it is more common in high‑pressure or high‑temperature processes, or when molds are worn or damaged.
Why Flash Is a Problem
Aesthetic and Functional Issues
Flash makes parts look unprofessional. It may need to be trimmed by hand or machine, adding labor cost. In precision assemblies, flash can interfere with fit or function.
Hidden Costs
- Material waste: Every bit of flash is material that did not become part of the product.
- Secondary operations: Trimming flash adds time and cost.
- Scrap: If flash cannot be removed, the whole part may be scrapped.
- Mold damage: Persistent flash often indicates mold damage that worsens over time.
Safety Risks
In medical or food contact parts, flash can create crevices where bacteria grow. In electrical parts, flash can cause short circuits.
Real‑scenario risk: A client was molding electrical connectors. Small flash on the mating surface prevented proper connection, leading to field failures. The root cause was a worn parting line on the mold. Refurbishing the mold eliminated the flash and the failures stopped.
Primary Causes of Flash
High Injection Pressure
If injection pressure exceeds the clamp force, the mold opens slightly, and plastic escapes. This is the most common cause of flash.
Low Clamp Force
Clamp force must be high enough to keep the mold closed against injection pressure. For large parts or high‑pressure materials, insufficient clamp force leads to flash.
Mold Damage or Wear
Over time, parting lines can wear or get damaged. Ejector pins can wear, creating gaps. Damaged slides or lifters also allow plastic to escape.
Contamination on Mold Faces
Dirt, old plastic, or foreign material on the parting line prevents the mold from closing fully, creating a gap.
Material Too Fluid
Some materials (like nylon or polypropylene) have very low viscosity when hot. They flow easily into tiny gaps, causing flash.
Overpacking
If too much material is injected, the cavity overfills and forces plastic into the parting line.
Improper Venting
Vents are intentional small gaps to let air escape. If vents are too deep, plastic will flow out and create flash.
How to Prevent Flash – Design and Tooling
Ensure Adequate Clamp Force
Choose a molding machine with enough clamp force for the projected area of your part. A rule of thumb: 3–5 tons per square inch of projected area, depending on material.
Maintain Mold Surfaces
Regularly inspect parting lines, ejector pins, and slide faces. Clean and polish as needed. For worn molds, consider:
- Refurbishing the parting line (surface grinding)
- Replacing worn pins and bushings
- Adding hard coatings to extend life
Balance the Mold
Ensure the mold closes evenly. Use witness marks or feeler gauges to check for gaps. Adjust as needed.
Optimize Gate and Runner Design
Poorly placed gates can cause overpacking in some areas, leading to flash. Use mold flow simulation to balance fill.
Use Proper Vent Depth
Vent depth should be matched to the material. For most materials, 0.02–0.04 mm is safe. For low‑viscosity materials, use shallower vents.
If you are experiencing flash problems, our engineers can review your mold design and suggest improvements. We offer custom injection mold design services that include DFM analysis to identify potential flash points before steel is cut. This early review saves time and prevents costly modifications.
How to Prevent Flash – Process Adjustments
Reduce Injection Pressure
Use the lowest pressure that still fills the part completely. High pressure is often unnecessary and causes flash.
Reduce Injection Speed
Slower injection reduces the pressure spike at the end of fill. However, be careful not to slow so much that the material freezes before filling.
Reduce Melt Temperature
Lower temperature increases viscosity, making the material less likely to flow into gaps. But ensure the part still fills properly.
Increase Clamp Force
If possible, increase clamp force to keep the mold closed tighter. This is the quickest fix if you have extra tonnage available.
Adjust Shot Size and Packing
Reduce shot size slightly to avoid overpacking. Lower hold pressure and time to prevent excess material from being forced into the parting line.
Check Material Drying
Some materials absorb moisture, which can cause degradation and lower viscosity. Dry materials properly.
How to Prevent Flash – Material Selection
| Material | Flash Tendency | Notes |
|---|---|---|
| Polypropylene (PP) | High | Very fluid, needs tight mold |
| Nylon (PA) | High | Low viscosity when hot |
| Polyethylene (PE) | High | Similar to PP |
| ABS | Low | More viscous, less flash |
| Polycarbonate (PC) | Low | High viscosity |
| Acrylic (PMMA) | Low | Moderate viscosity |
If flash is persistent, consider switching to a higher‑viscosity grade or adding fillers to reduce flow.
Common Myths About Flash
| Myth | Reality |
|---|---|
| “Flash is just a cosmetic issue.” | It can indicate serious mold or process problems. |
| “We can always trim it off.” | Trimming adds cost and may not be possible for internal features. |
| “More clamp force always fixes flash.” | Sometimes, but if the mold is worn, more force won’t help. |
| “Flash means the material is too hot.” | It can be, but pressure and clamp force are bigger factors. |
Case Example
A medical parts molder came to us with a problem: small flash on the parting line of a critical device housing. They had tried reducing injection pressure and temperature, but the flash persisted. We inspected the mold and found minor wear on the parting line – just 0.02 mm, but enough to let material escape. We recommended a light surface grind to restore the parting line. After that, the flash disappeared, and the parts passed inspection.
Summary Checklist
To prevent flash:
- Use adequate clamp force (3–5 tons/in²)
- Maintain mold surfaces – inspect for wear regularly
- Keep parting lines clean
- Optimize vent depth (0.02–0.04 mm)
- Reduce injection pressure and speed if possible
- Avoid overpacking – use proper shot size
- Consider material change if flash persists
For a deeper dive into all injection molding defects, read our injection molding defects guide.
Fighting Flash on Your Molded Parts?
Our engineers can help you identify the root cause – whether it’s mold wear, process settings, or material issues. We’ll work with you to eliminate flash and improve part quality.
Most clients receive a troubleshooting plan within 48 hours.
Submit Your Part for Review → /contact/
Frequently Asked Questions
Q1: Is a small amount of flash acceptable?
A: It depends on the application. For cosmetic or functional parts, any flash may be unacceptable. For hidden areas, slight flash might be tolerated, but it’s best to eliminate it.
Q2: Can flash damage the mold?
A: Yes. If flash is forced out repeatedly, it can act like a wedge, worsening the gap and potentially cracking the mold.
Q3: How do I measure flash?
A: Flash thickness can be measured with a micrometer or feeler gauge. Compare to your specifications.
Q4: Does flash always mean the mold is bad?
A: Not always. It could be a process issue. But if process adjustments don’t help, inspect the mold.
Q5: What is the best way to remove flash?
A: For small parts, tumbling or vibratory finishing works. For larger parts, hand trimming or robotic deflashing may be needed.
Q6: Can vent depth cause flash?
A: Yes. Vents that are too deep allow plastic to escape. Always use material‑appropriate vent depths.
Summary
Flash is a preventable defect. By understanding its causes – excessive pressure, low clamp force, worn molds, or overly fluid materials – you can take steps to eliminate it. Regular mold maintenance, proper process settings, and good design practices all contribute to flash‑free parts.
