Polycarbonate (PC) is a high-performance engineering plastic known for its exceptional clarity, impact strength, and heat resistance. From medical devices to automotive lenses, polycarbonate injection molding delivers parts that must perform in demanding environments. At Miracles Manufacturing, we offer a complete PC injection molding service backed by decades of experience. We understand how to dry, mold, and finish PC to achieve optical-grade clarity and structural integrity. This page explains our capabilities, the unique properties of polycarbonate, and how we ensure your project succeeds.
Why Choose Miracles for Polycarbonate Molding
Deep Material Knowledge
PC is not forgiving. It must be dried properly, molded at the right temperature, and designed with care. Our engineers have molded thousands of PC parts – from thick safety shields to thin-wall lenses. We know how to avoid common defects like splay, bubbles, and stress cracking.
In-House Mold Design
PC requires excellent mold design. Gates must be placed to minimize stress. Cooling must be uniform to prevent warpage. Ejection must be gentle to avoid marks. Our in-house toolmakers build molds specifically optimized for polycarbonate.
Cleanroom-Compatible Molding
For medical and optical applications, we offer cleanroom-compatible production. Parts are molded and packaged in controlled environments to meet ISO 13485 requirements.
Quality You Can See

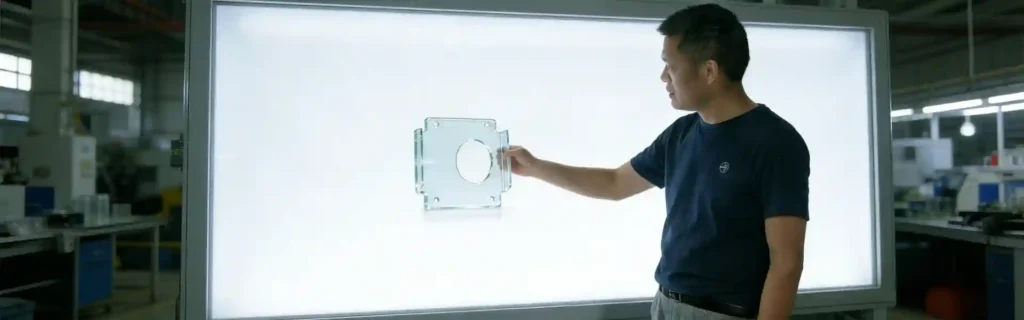

We inspect every PC part for clarity, dimensions, and defects. For transparent parts, we use light boxes to check for haze, bubbles, or contamination. You get parts that look as good as they perform.
For an overview of all our material capabilities, visit our custom injection molding services by material page .
What Makes Polycarbonate Special
Polycarbonate is an amorphous thermoplastic with unique properties:
Optical Clarity
PC transmits about 88–90% of light – slightly less than glass or acrylic, but still excellent. It is used for lenses, windows, and transparent shields.
Impact Strength
PC is virtually unbreakable. It is 250 times stronger than glass and significantly tougher than acrylic. This is why it is used for safety goggles, riot shields, and bullet-resistant glazing.
Heat Resistance
PC withstands continuous use up to 130°C. It maintains its shape and strength in hot environments, unlike many other transparent plastics.
Dimensional Stability
PC has low, predictable shrinkage (0.5–0.7%). Parts hold tight tolerances and resist warpage.
Flame Retardance
Special grades of PC meet UL94 V-0 standards without halogens. They are used in electrical and electronic enclosures.
Challenges
- Moisture sensitive – PC absorbs water and must be dried thoroughly
- Chemical sensitivity – PC can crack under stress with certain chemicals
- Scratch prone – uncoated PC scratches easily
If you need help deciding between PC and other materials, our team can guide you. We also offer acrylic injection molding for applications where clarity is the top priority [内链 2：强链到 G3-1-? 如果存在] – or you can read our PC vs acrylic comparison guide .
Applications of Polycarbonate Molded Parts
| Industry | Common Parts |
|---|---|
| Medical | Surgical instrument handles, IV components, device housings |
| Automotive | Headlamp lenses, interior trim, dashboard components |
| Electronics | Transparent displays, LED lenses, connector housings |
| Safety | Goggles, face shields, machine guards |
| Consumer | Water bottles, food containers, eyewear frames |
| Lighting | Light covers, diffusers, optical lenses |
No matter your industry, we have the experience to produce PC parts that meet your specifications.
Our Polycarbonate Injection Molding Process
Step 1 – Design for Manufacturing (DFM)
Send us your 3D model. Our engineers review it for:
- Uniform wall thickness (avoid thick sections that cause voids)
- Draft angles (1–2° minimum)
- Gate location (to minimize stress and weld lines)
- Sharp corners (add radii to prevent stress cracks)
We provide a DFM report with actionable feedback – often within 48 hours.
Step 2 – Material Selection
We help you choose the right PC grade:
- General purpose – for most applications
- High flow – for thin-wall parts
- UV stabilized – for outdoor use
- Medical grade – USP Class VI, ISO 10993
- Flame retardant – UL94 V-0
- Optical grade – maximum clarity
All materials come with full traceability and certifications.
Step 3 – Drying (Critical for PC)
PC is hygroscopic – it absorbs moisture from air. If molded wet, you get:
- Splay (silver streaks)
- Bubbles
- Reduced strength
- Surface defects
We dry PC at 120°C for 4–6 hours to below 0.02% moisture. We use dehumidifying dryers and moisture analyzers to ensure quality.
Step 4 – Mold Design & Manufacturing
Our toolmakers design molds with PC in mind:
- Gate size – larger gates reduce shear and stress
- Runner system – full-round runners for low pressure drop
- Cooling – balanced cooling to prevent warpage
- Ejection – large ejector pins or lifters to avoid marking transparent surfaces
Step 5 – Molding & Quality Control
We run PC on all-electric machines for precise control of:
- Melt temperature (280–320°C)
- Mold temperature (80–120°C)
- Injection speed (medium to high)
- Packing pressure (to compensate for shrinkage)
During production:
- First article inspection with CMM
- In-process dimensional checks
- Visual inspection under controlled lighting
- Functional testing as required
Step 6 – Secondary Operations
Need post-molding work? We offer:
- Laser marking for serial numbers or logos
- Pad printing
- Ultrasonic welding
- Assembly
- Custom packaging
For a deeper look at how we design molds for challenging materials, see our custom injection mold design services .
Quality Assurance for Polycarbonate Parts
PC parts demand extra care. Our quality process includes:
- Material verification – certificates of analysis for every lot
- Moisture testing – confirm drying before molding
- First article inspection – full dimensions, photos, notes
- In-process SPC – monitor critical dimensions
- Visual inspection – light box for transparent parts
- Functional testing – impact, heat, or chemical resistance as needed
For medical or automotive applications, we provide full documentation packages.
Frequently Asked Questions
Q1: Can polycarbonate be molded with optical clarity?
A: Yes, with proper drying, mold design, and processing. We achieve optical-grade clarity for lenses, light covers, and displays.
Q2: What is the difference between PC and acrylic for molding?
A: PC is stronger and more heat-resistant but scratches more easily. Acrylic is clearer and cheaper but more brittle. See our PC vs acrylic comparison for details .
Q3: Do you offer UV-stabilized polycarbonate?
A: Yes, we can source UV-stabilized grades for outdoor applications. These resist yellowing and degradation from sunlight.
Q4: What wall thickness is recommended for PC parts?
A: Typical walls are 1.5–3.0 mm. Thicker walls may need special design to avoid voids. We can help optimize your design.
Q5: Can PC be overmolded with TPE?
A: Yes, PC bonds well with TPE for soft-grip handles and seals. We offer overmolding services for two-material parts.
Q6: What certifications do you provide for medical PC parts?
A: We provide material certifications (USP Class VI, ISO 10993 if required), process validation, and full traceability.
