Weld lines – also called knit lines – are visible lines or weak spots on injection molded parts. They form when two flow fronts of molten plastic meet and fail to bond completely. A weld line can ruin the look of a part, but worse, it can create a structural weak point that breaks under stress. Understanding weld line injection molding issues is critical for anyone who designs or produces plastic parts. In this guide, we explain why weld lines happen, how to minimize them, and what to do when they cannot be avoided. Whether you are an engineer or a buyer, these tips will help you get better parts.
What Are Weld Lines?
A weld line occurs when two or more flow fronts meet during the injection molding process. Instead of merging perfectly, they leave a visible line where the material did not fully bond.
Where they appear:
- Around holes or inserts (flow splits and rejoins)
- Opposite the gate in multi‑gated parts
- Where flow fronts meet after flowing around an obstacle
- In areas with complex geometry that splits the flow

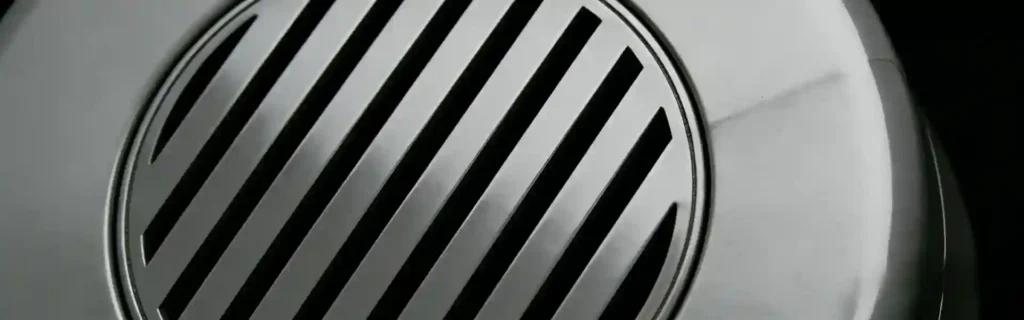

Weld lines are often visible as faint lines or discoloration. In transparent parts, they may look like tiny cracks. In colored parts, they may appear as a slight change in gloss.
Knit lines are essentially the same thing. Some engineers use “weld line” for where flow fronts meet head‑on, and “knit line” for where they meet at an angle. In practice, the terms are used interchangeably.
Why Weld Lines Matter
Aesthetic Issues
On cosmetic surfaces, weld lines are undesirable. They distract the eye and can make a product look cheap. In textured or painted parts, they may be hidden, but in glossy or transparent parts, they are hard to miss.
Structural Weakness
The real danger is strength. At a weld line, the polymer chains are not fully entangled. They may be oriented parallel to the line, not across it. This can reduce strength by 10–50%, depending on the material and processing conditions.
Failure Points
Under load, parts often break at weld lines first. This is especially critical for safety parts, medical devices, or anything that must withstand stress.
Real‑scenario risk: A client made a plastic bracket that held a heavy component. The bracket had a small hole for mounting, and a weld line formed right next to the hole. Under vibration, the bracket cracked at the weld line. Redesigning the gate location moved the weld line away from the high‑stress area and solved the problem.
Causes of Weld Lines
Multiple Flow Fronts
Any time the flow splits and rejoins, a weld line forms. This happens with:
- Multi‑gated molds
- Parts with holes or cutouts
- Inserts placed in the cavity
- Complex geometries that divide the flow
Low Melt Temperature
If the plastic is too cool when the flow fronts meet, they do not bond well. The surfaces may have started to solidify, preventing full mixing.
Slow Injection Speed
Slow filling gives the material more time to cool before meeting. Fast injection pushes the fronts together while still hot.
Poor Venting
Trapped air at the meeting point can prevent the fronts from touching fully. Air pockets weaken the bond and may cause burn marks.
Material Factors
Some materials naturally form stronger weld lines than others. Amorphous materials (ABS, PC) tend to bond better than semi‑crystalline materials (PP, Nylon). Fillers and reinforcements can disrupt the bond.
How to Minimize Weld Lines – Design Changes

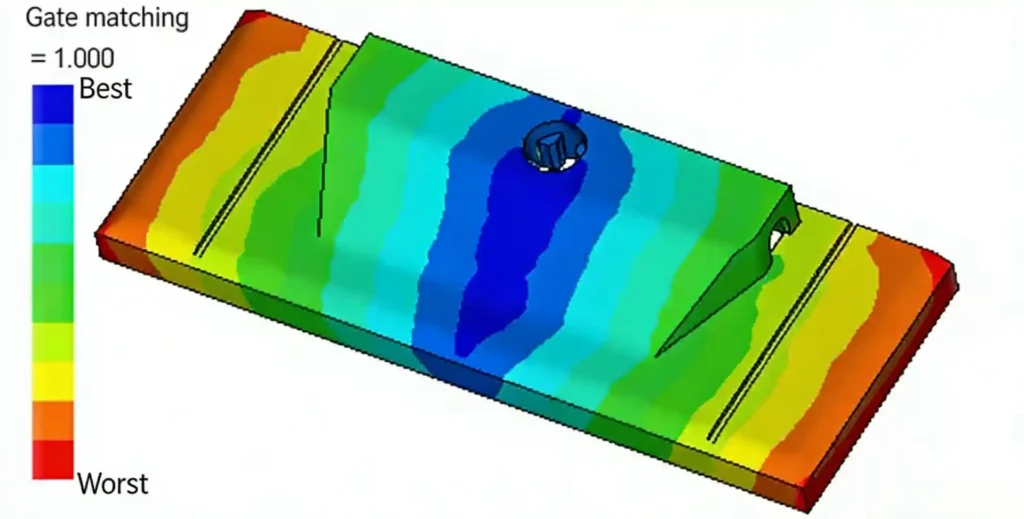

Relocate Gates
The most effective fix is to place gates so flow fronts meet where it matters least. Avoid placing weld lines in high‑stress areas or cosmetic surfaces.
Reduce the Number of Gates
If possible, use a single gate instead of multiple gates. This eliminates weld lines altogether. But single gates may not work for very large parts.
Enlarge or Move Holes
For parts with holes, consider moving the hole so the flow does not have to split. Or use a flow leader to guide the material around the hole in a way that minimizes the weld line.
Add Flow Leaders or Deflectors
Small ribs or changes in wall thickness can direct the flow and change where weld lines form. Mold flow simulation helps predict the effect.
Use Cold Slug Wells and Overflow Wells
Another effective technique is adding small features in the mold to trap the cool material that forms weak weld lines.
A cold slug well is a small pocket at the end of the flow path. The first bit of material to enter the mold – the coldest, most viscous plastic – goes into this well instead of into the part. This removes the poorly flowing material from the weld area, allowing fresher material to bond.

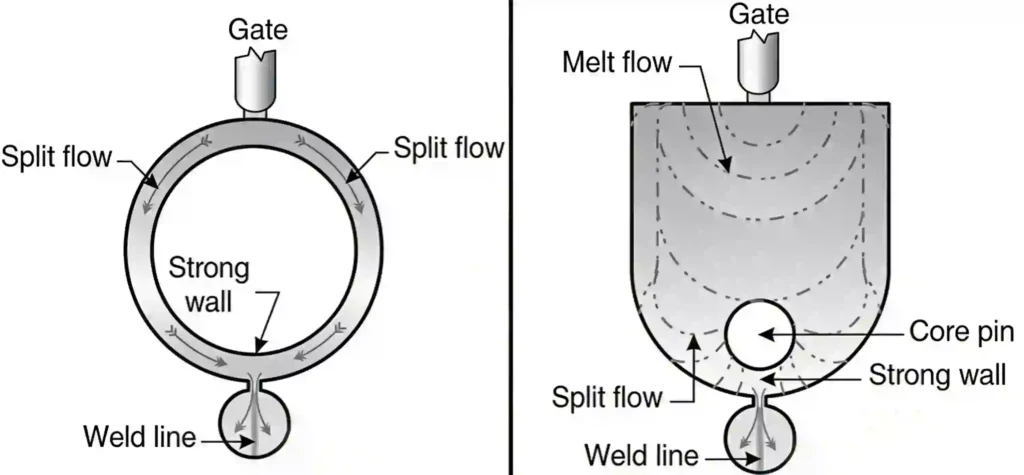

For parts that need very strong weld lines, consider overflow wells. These are small auxiliary cavities connected to the weld line area by a thin gate. When the flow fronts meet, a small amount of material is pushed into the overflow well, carrying the weak weld line with it. The well is then trimmed off after molding.
How it works:
- The well creates a place for the weld line to form away from the part
- Fresh, hot material replaces the cold front at the bond area
- The weld line inside the part becomes much stronger
Trade‑off: You sacrifice a small amount of material (the trimmed well) and may need an extra secondary operation to remove it. But for high‑strength parts, this is a small price to pay for reliability.
Real‑scenario example: We had a client making high‑stress automotive brackets. Weld lines near a hole caused failures in testing. Adding an overflow well moved the weak line into the scrap area, and the brackets passed all tests.
If you are struggling with weld lines in your part, our engineers can help. We offer custom injection mold design services that include mold flow analysis to optimize gate locations and minimize defects. This early analysis saves time and prevents costly mold modifications.
How to Minimize Weld Lines – Process Adjustments
Increase Melt Temperature
Higher temperature keeps the material fluid longer, allowing better bonding at the flow front. Raise the temperature in steps of 5–10°C and test.
Increase Injection Speed
Fast injection pushes the molten fronts together with more force and less cooling. Use a high injection speed, especially in the final stage of fill.
Increase Mold Temperature
A warmer mold slows cooling at the flow front, giving more time for bonding. This is especially helpful for crystalline materials.
Increase Packing Pressure
After the cavity is full, high packing pressure can force more material into the weld area, improving the bond.
Improve Venting
Add vents at the weld line location. Vents allow trapped air to escape so the plastic can touch fully. Vent depth should be 0.02–0.04 mm for most materials.
How to Minimize Weld Lines – Material Selection
| Material | Weld Line Strength | Notes |
|---|---|---|
| ABS | Good | Amorphous, bonds well |
| Polycarbonate (PC) | Good | Amorphous, but high viscosity |
| Polystyrene (PS) | Moderate | Can be brittle at weld lines |
| Polypropylene (PP) | Poor | Semi‑crystalline, hard to bond |
| Nylon (PA) | Poor | Needs high mold temps for good bonding |
| Glass‑filled materials | Very poor | Fibers disrupt the bond |
If weld lines are unavoidable, consider switching to an amorphous material or adding a flow enhancer.
Common Myths About Weld Lines
| Myth | Reality |
|---|---|
| “Weld lines are only cosmetic.” | They can reduce strength by 50% or more. |
| “We can fix them by increasing pressure.” | Pressure helps, but temperature and speed matter more. |
| “All plastics have the same weld line strength.” | Amorphous vs. crystalline makes a huge difference. |
| “Weld lines mean the mold is bad.” | Usually it’s a design or process issue. |
When Weld Lines Cannot Be Avoided
Sometimes weld lines are inevitable. In that case:
- Move them to low‑stress areas using gate placement.
- Test the parts to ensure strength is adequate.
- Consider post‑molding operations like annealing to relieve stress.
- Use cosmetic finishes (texture, paint) to hide them.
Summary Checklist
To minimize weld lines:
- Place gates to avoid weld lines in critical areas
- Use single gate where possible
- Consider adding cold slug wells or overflow wells
- Increase melt temperature
- Increase injection speed
- Add vents at weld line locations
- Consider material change if problems persist
For a deeper dive into all injection molding defects, read our injection molding defects guide.
Frequently Asked Questions
Q1: Can weld lines be completely eliminated?
A: In single‑gate molds with no obstacles, yes. In parts with holes or multiple gates, they may be unavoidable, but they can be minimized and moved to less critical areas.
Q2: How much strength is lost at a weld line?
A: It varies. For amorphous materials like ABS, loss may be 10–20%. For crystalline materials like PP, loss can be 50% or more. Glass‑filled materials are worst.
Q3: Can I test weld line strength?
A: Yes. Mold test bars with a weld line in the middle and perform tensile tests. Compare to bars without weld lines.
Q4: Does texture hide weld lines?
A: Texture can make them less visible, but it does not fix the structural weakness.
Q5: What is the best material for avoiding weld line problems?
A: Amorphous materials like ABS, PC, and PS generally form stronger weld lines than semi‑crystalline materials.
Q6: Can mold flow simulation predict weld lines?
A: Yes, mold flow software shows where weld lines will form and can help optimize gate locations to minimize their impact.
Q7: What is an overflow well and when should I use it?
A: An overflow well is a small auxiliary cavity that traps the weak weld line material, removing it from the main part. Use it when weld lines occur in high‑stress areas and other fixes are not enough.
Summary
Weld lines are a common but manageable defect in injection molding. By understanding what causes them and applying the right solutions – design changes, process adjustments, material selection, and advanced techniques like overflow wells – you can minimize their impact and produce stronger, better‑looking parts.
